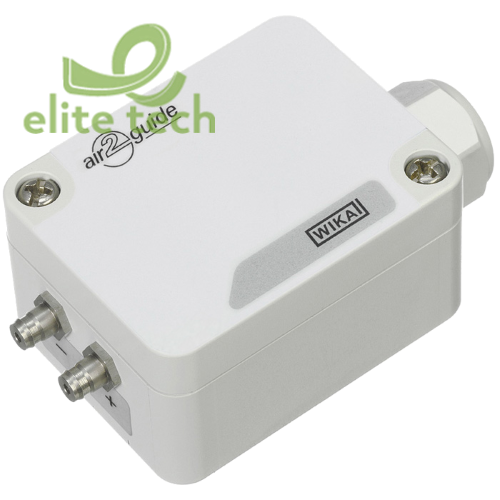

Cảm Biến Áp Suất WIKA A2G-55 - Differential Pressure Transducer Eco

  • Measuring element Piezo measuring cell
  • Measuring range
    • 0 ... 250 Pa
    • 0 ... 500 Pa
    • 0 ... 750 Pa
    • 0 ... 1,000 Pa
    • 0 ... 1,250 Pa
    • 0 ... 2,500 Pa
    • 0 ... 3,750 Pa
    • 0 ... 5,000 Pa
  • Accuracy ±2.5 % FS
  • Type of mounting Vertical wall mounting
  • Process connection For hoses with inner diameter 5.5 mm
  • Electrical connection
    • Cable gland M16
    • Screw terminals max. 1.5 mm2
  • Output signal 0 … 10 V (4 … 20 mA optional)
  • Supply voltage DC 13 ... 32 V
  • Case Plastic (ABS)
  • Permissible temperatures
    • Ambient temperature: -10 ... +50 °C
    • Medium temperature: -10 ... +50 °C
  • Ingress protection IP65
  • Weight 70 g

Dimension
