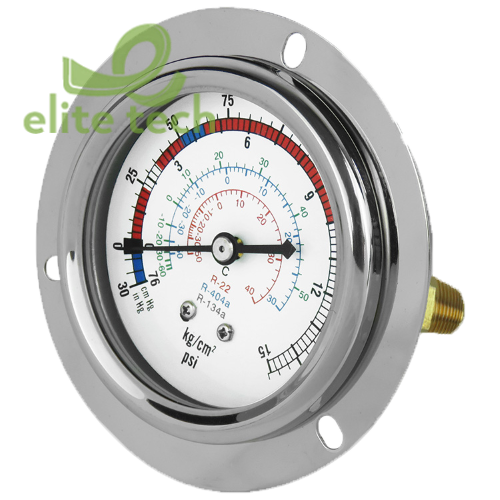

Đồng Hồ Áp Suất ATLANTIS SF-C

Đặc Trưng
■ Dịch vụ OEM
■ Thiết kế vỏ thép không gỉ


Đồng Hồ Áp Suất ATLANTIS SF-C - All Stainless Steel Shockproof Pressure Gauge

▼Size: 2.5”, 3”
▼Window:
  • PC / Tempered glass
  • With O-ring sealed
▼Pressure connection
  • Material: copper alloy
  • With O-ring sealed
  • Size: 1/8”, 1/4”, 7/16”
  • Type: NPT, UNF, SAE, Flare
▼Pressure range
  • Low pressure: -76cmHg…250 psi to 500 psi
  • High pressure: 0 … 500psi to 800 psi
▼Applicable fluid: Liquid and gas that compatible with SS 316
▼Application: Sanitary required environments
▼Ambient temperature:
  • Dry: -40°C to +60°C
  • Glycerin filled: -20°C to +60°C
▼Fluid temperature:
  • Dry:+60°C
  • Glycerin filled: +60°C
▼Temperature error: Every ±12 °C max. error:±0.3% F.S
▼Protection level: IP 54/ IP 65
▼Ring mount: Stainless steel, Crimp bezel
▼Back housing: SS 304
▼Pointer: Aluminum with black enamel
▼Dial face
  • Refrigeration type / Corresponding temperature
  • kg/cm2, psi, bar, kPa, ℃, ℉
  • Zero adjustment in front
▼Measuring elements:
  • Bourdon tube
  • Material: copper alloy
▼Movement: Copper alloy
▼Accuracy: 2.5%
▼Operating pressure
  • Stabilization:3/4* full scale
  • Fluctuation:2/3* full scale
  • Impulse:1* full scale
