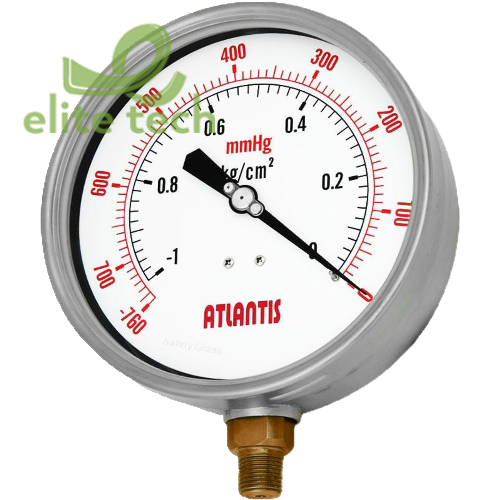

Đồng Hồ Áp Suất ATLANTIS SF-SC

Đặc Trưng
■ Dịch vụ OEM
■ Thiết kế vỏ thép không gỉ
■ Cài đặt xả ngược, thiết kế đặc biệt cho các ứng dụng công nghiệp
■ Kết nối làm kín O-ring
■ Tuổi thọ cao


Đồng Hồ Áp Suất ATLANTIS SF-SC - Stainless Steel Case Safety Pattern Pressure Gauge

▼Size: 4”, 6”
▼Installation type
  • Bottom mount (A)
  • Bottom mount with flange (B)
  • Back mount (ADC)
  • Back mount (eccentric thread) (ADE)
  • Back mount with flange (BDC)
  • Back mount with flange (eccentric thread) (BDE)
  • Back mount with U-Clamp (Eccentric thread) (UDE)
  • Back mount with flange and U-Clamp (Eccentric thread) (UBDE)
▼Window: Safety glass, Rubber O-ring sealed
▼Pressure connection
  • Material:copper alloy
  • Rubber O-ring sealed
  • Thread size: 1/4”, 3/8”, 1/2”
  • Thread type: BSPT, NPT, PF
  • Other thread specifications please specify before order
▼Pressure range
  • Gauge pressure: 0…1 to 350 bar
  • Negative pressure: -1…0 bar
  • Compound pressure: -1…0 to 20 bar
▼Applicable fluid: Liquid and gas that compatible with copper alloy
▼Ambient temperature:
  • Dry & Silicone oil filled: -40°C to +60°C
  • Glycerin filled: -20°C to +60°C
▼Fluid temperature: +60°C
▼Temperature error: Every ±12 °C max. error:±0.3% F.S
▼Protection level: IP54 (standard) / IP65 (option)
▼Ring material: Stainless steel
▼Ring mount: Inside bayonet
▼Case: SS304
▼Pointer: Aluminum with black enamel
▼Dial face
  • Blue & black scale
  • Pressure unit, scale & color can be customized upon request
▼Measuring elements: Bourdon tube, Material copper alloy
▼Safety design: Blow-out back
▼Movement: Copper alloy
▼Accuracy: 3%
▼Operating pressure
  • Stabilization:3/4* full scale
  • Fluctuation:2/3* full scale
  • Impulse:1* full scale
