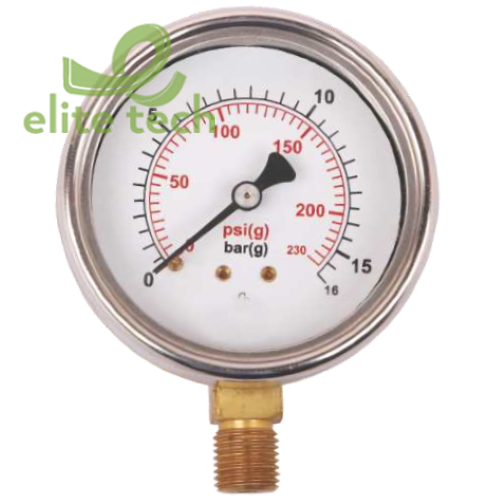

Đồng Hồ Áp Suất GENERAL SPGB / LFSPGB


Đồng Hồ Áp Suất GENERAL SPGB / LFSPGB - Small Pressure Gauges Brass Internal

Ref.standardEN837
Dial40mm / 50mm / 63mm in Aluminium, white background, black markings
CasePressed steel, epoxy painted black / SS304
ProtectionIP 68 for 50mm & 63mm, SS Case only (Not Applicable for 40mm SS Case & all Pressed Steel Cases)
BourdonPh Bronze / Brass
MovementBrass
RangeRefer Table
Accuracy± 2% FSD
Blow out discProvided (on top) for 50mm & 63mm dials
Not Applicable for 40mm Dial
Temperature SutablityAmbient (-) 20°C to 60°C, Media 100°C
Temperature EffectWithin ±0.4% FSD/10°C, when temperature changes from reference temperature of 20°C (as per EN-837 standard)
OptionalGlycerine filled case (in SS case of 50mm & 63mm only)
Built in snubber
CE
