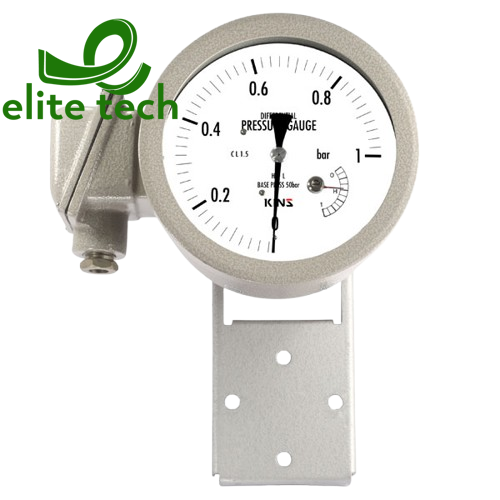

Đồng Hồ Áp Suất KINS KDG-17 Differential Pressure Gauge With Micro Switch

• Summary
  • This gauge has a pressure inlet port. The pressure inlet port measures the differential pressure between low pressure side and high pressure side. It also measures warning liquid level of a tank, etc.
• Diameter 150mm
• Accuracy
• Grade: ±1.5% of Full Scale
• Repeatability: ±1.0% of Adj Range
• Dead Band: ±4.0%

• Scale Range
• 5 ~ 50 kPa, 0 ~ 1 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Base Press 5 MPa
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Structure Aluminum (Hammer tone coating) / Weather Proof
• Cover
• Aluminum (Hammer tone coating)
• Body: STS 304, STS 316
• Connection
• STS 316
• PT ↔ 1/4(Female)
• Window Tempered safety glass or Laminated safety glass
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White coating
• Black gradation and characters
• Bellows (Element) STS 316

• Contact rating
• AC 125V 5A / 250V 3A
• DC 30V 4A / 125V 0.4A / 250V 0.2A
• Contact Form
• Micro Contact Type
• SPDT * 1, SPDT * 2
  (High, Low, High & High High & Low, Low & Low)
