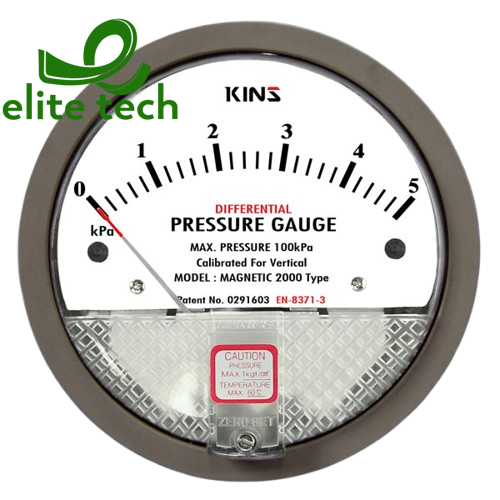

Đồng Hồ Áp Suất KINS Magnetic 2000 Differential Pressure Gauge

• Summary
  • This gauge has L (low pressure side) and H (high pressure side) in pressure access port. By indicating the differential of pressure (differential pressure) of 2 places.
• Diameter 100mm
• Accuracy ±2.0% of Full Scale

• Scale Range
• -0.25~0.25kPa ~ -10~10kPa, 0~50kPa
  (※ 1 kPa = 101.9716 mm H₂O)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 10 ~ 60 ℃
• Case & Cover Aluminum (Hammer tone coating)
• Connection PT ↔ 1/8 (Female)
• Window Poly Carbonate
• Type BD-Type (Panel attachment type-Bracket)
• Pointer
• Aluminum
• Pointer: Red color
• Dial
• Aluminum
• White coating
• Black gradation and characters

• Element Silicon Rubber, NBR
• Base Pressure 0.1 MPa
