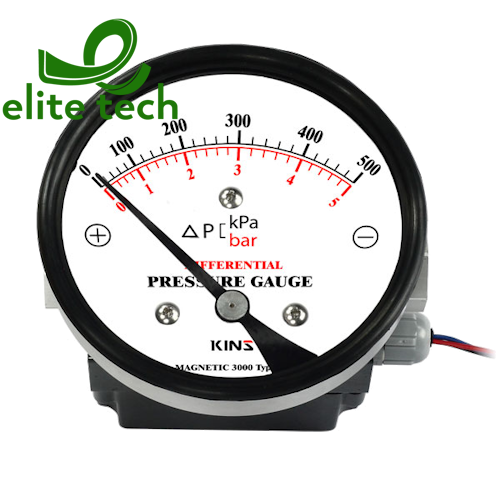

Đồng Hồ Áp Suất KINS Magnetic 3010 Differential Pressure Gauge With Electric Contact

• Summary
  • This gauge has L (low pressure side) and H (high pressure side) in pressure access port. By indicating the differential of pressure (differential pressure) of 2 places.
• Diameter 50mm, 80mm, 100mm
• Accuracy ±2.0% of Full Scale

• Scale Range
• 50kPa ~ 400kPa
  (※ 1 kPa = 0.01 bar)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 10 ~ 60 ℃
• Case STS 304
• Cover Rubber
• Connection
• Aluminum
• PT ↔ 1/4 (2×Female)
• Window General glas
• Pointer
• Aluminum
• Pointer: Black color
• Dial
• Aluminum
• White coating
• Black, red gradations and characters

• Element Viton
• Base Pressure
• Aluminum: 2MPa
• Contact Form
• SPST * 1
• High (High 1 contact), Low (Low 1 contact)
