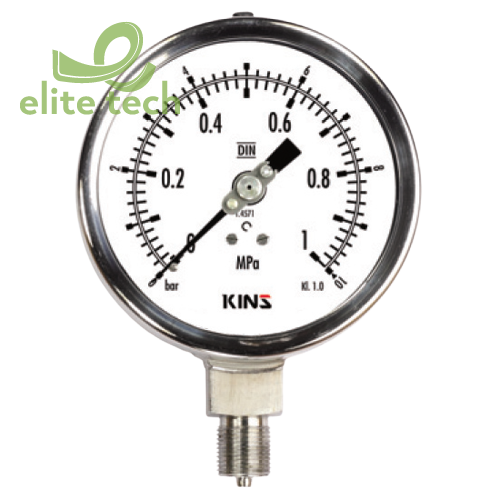

Đồng Hồ Áp Suất KINS SF-3020 100mm Solid Front Safety Pressure Gauge

• Summary
  • This gauge is very safe even when the pressure increases because the front side is strong and made of blow out back. The appearance is beautiful because the case, cover and the connecting part are mad.
• Diameter 100 mm
• Accuracy ±1.0% of Full Scale
• Scale Range - 1 ~ 0 to 0 ~ 200 MPa

• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80℃
• Case STS 304
• Cover
• STS 304
• Bayonet Type
• Connection
• STS 316
• PF, PT, NPT ↔ 3/8, 1/2
• Window Tempered safety glass or Laminated safety glass
• Type A-Type (Rimless type) [Soild Front Type]
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black (MPa), red (bar) gradations and characters

• Element
• STS 304, STS 316
• C type bourdon tube, helical type bourdon tube
• Movement STS 304
• Option
• Bracket
• Throttles
• Accessories
