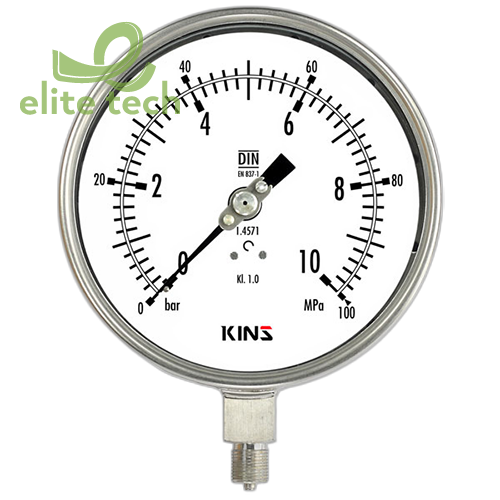

Đồng Hồ Áp Suất KINS SF-3020 160mm Solid Front Safety Pressure Gauge

• Summary
  • This gauge is very safe even when the pressure increases because the front side is strong and made of blow out back.
• Diameter 160 mm
• Accuracy ±1.0% of Full Scale
• Scale Range - 1 ~ 0 to 0 ~ 200 MPa

• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80℃
• Case STS 304
• Cover
• STS 304
• Bayonet Type
• Connection
• STS 316
• PF, PT, NPT ↔ 3/8, 1/2
• Window Tempered safety glass or Laminated safety glass
• Type A-Type (Rimless type) [Soild Front Type]
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black gradation and characters

• Element
• STS 304, STS 316
• C type bourdon tube, helical type bourdon tube
• Movement STS 304
• Option
• Bracket
• Throttles
• Accessories
