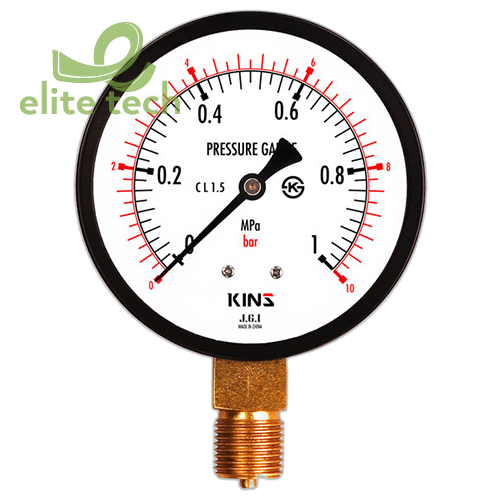

Đồng Hồ Áp Suất KINS SS-3010 General Pressure Gauge

• Summary This gauge is the most widely used pressure gauge. It has high durability by doing special process in bourdon tube.
• Diameter 40, 50, 60, 75, 100, 150mm
• Accuracy
  • 40mm: ±3.0% of Full Scale
  • 50mm: ±3.0% or ±1.5% of Full Scale
  • 60, 75, 100, 150mm: ±1.5% of Full Scale
• Working Pressure
  • Static pressure: 75% of Full Scale
  • Fluctuating pressure: 60% of Full Scale
• Working Temperature
  • Ambient: - 20 ~ 65 ℃
  • Fluid: - 20 ~ 40 ℃
• Case
  • Steel (SPCD)
  • Black coating
• Cover
  • Steel (SPCD)
  • Black coating
• Connection
  • Brass(C3604BE)
  • PF ↔ 3/8
• Window General glass
• Type
  • A-Type (Rimless type)
  • B-Type (Surface type)
  • D-Type (Flush mounting type)
  • BD-Type (Panel attachment type)
• Pointer
  • Aluminum
  • Black coating
• Dial
  • Aluminum
  • White color coating
  • Black (MPa), red (bar) gradations and characters
• Element
  • Brass (C2700T)
  • C type bourdon tube, helical type bourdon tube
• Movement Brass
• Option
  • Bracket
  • Throttles
  • Accessories
