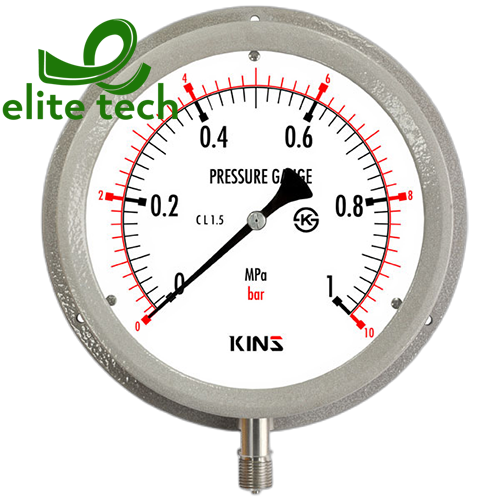

Đồng Hồ Áp Suất KINS SS-3020 Series 200mm Special Pressure Gauge

• Summary
  • This gauge has high corrosive resistance and its properly built to measure fluid pressure which can withstand outside condition change. It has high accuracy because its connecting part is made by STS.
• Diameter 200 mm
• Accuracy ±1.0% of Full Scale

• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80℃
• Degree of Protection IP 67
• Case Aluminum (Hammer tone coating)
• Cover Aluminum (Hammer tone coating)
• Connection
• STS 316
• PF, PT, NPT ↔ 3/8, 1/2
• Window Tempered safety glass or Laminated safety glass
• Type
• B-type (Surface type)
• D-type (Flush mounting type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black (MPa), red (bar) gradations and characters

• Element
• STS 304, STS 316
• C type bourdon tube, helical type bourdon tube
• Movement STS 304
• Option
• Bracket
• Throttles
• Accessories
