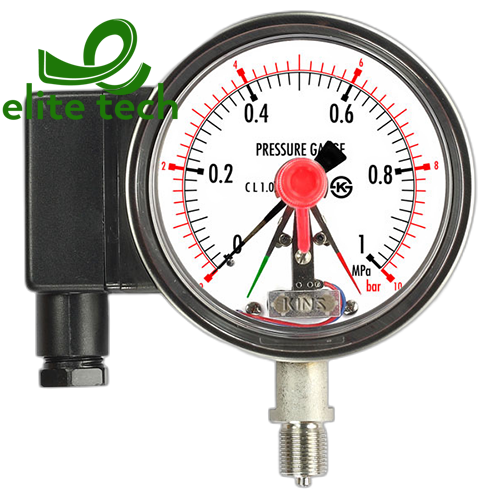

Đồng Hồ Áp Suất KINS SS-3025 SS-3026 SS-3027 SS-3028 Pressure Gauge (With Electric Contact)

• Summary
  • This gauge has a contact device inside the indicator. Not only indicating of pressure but also its able to control and report by sending an electric signal in a built-in contact.
• Diameter 100, 150 mm
• Accuracy ±1.0% of Full Scale

• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80℃
• Case STS 304
• Cover
• STS 304
• Slip-on-Fit
• Connection
• STS 316
• PF, PT, NPT ↔ 1/4, 3/8, 1/2
• Window Poly Carbonate
• Type
• A-Type (Rimless type)
• B-Type (Surface type)
• D-Type (Flush mounting type)
• BD-Type (Panel attachment type)
• Pointer
• Phosphor bronze
• Black coating
• Contact indicator High
• Dial
• Aluminum
• White color coating
• Black (MPa), red (bar) gradations and characters

• Contact Rating
• AC 125 0.5A / 250V 0.25A
• DC 24V 0.25A
• Element
• STS 304, STS 316
• C type bourdon tube, helical type bourdon tube
• Contact Form
• SPST * 1, SPST * 2
• High, low 2 contact
  (high or Low, high & High High & Low, Low & Low)
