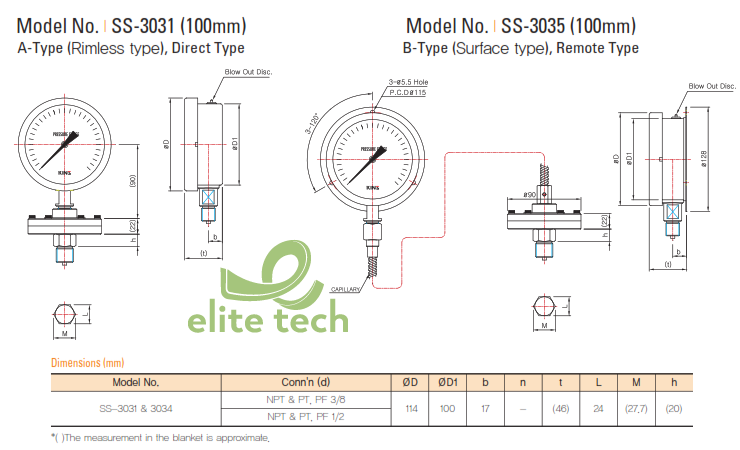

Đồng Hồ Áp Suất KINS SS-3031 SS-3034 Diaphragm Seal Type Pressure Gauge

• Summary
  • This device was designed to guarantee the performance and the lifespan when measuring pressure in chemical industry even when measuring fluid is mixed with powder.
• Diameter 100 mm
• Accuracy ±1.0% of Full Scale

• Scale Range
• - 0.1 MPa ~ 0, - 0.1 MPa ~ 2 MPa, 0 ~ 35 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover STS 304
• Upper Flange STS 304, STS 316
• Under Flange STS 304, STS 316
• Connection
• STS 316
  PF, PT ↔ 1/4, 3/8, 1/2, 3/4
• Window Tempered safety glass or Laminated safety glass
• Type
• SS-3031-Type (Direct type - Screw)
• SS-3034-Type (Flexible type - Screw)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black gradation and characters

• Element
• STS 304. STS 316
• C type bourdon tube
• Diaphragm
• STS 304, STS 316
• Teflon (Lining, Coating), Titanium
• Able to produce teflon (lining, coating) titanium, tantalum, hastelloy, etc
