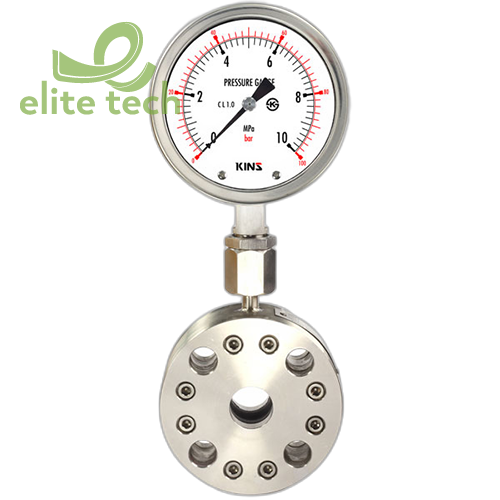

Đồng Hồ Áp Suất KINS SS-3037 Ring Diaphragm Type Pressure Gauge

• Summary
  • This gauge is designed to measure various fluid`s pressure flowing in a pipe effectively and accurately. It also has corrosive resistance and heat resistance.

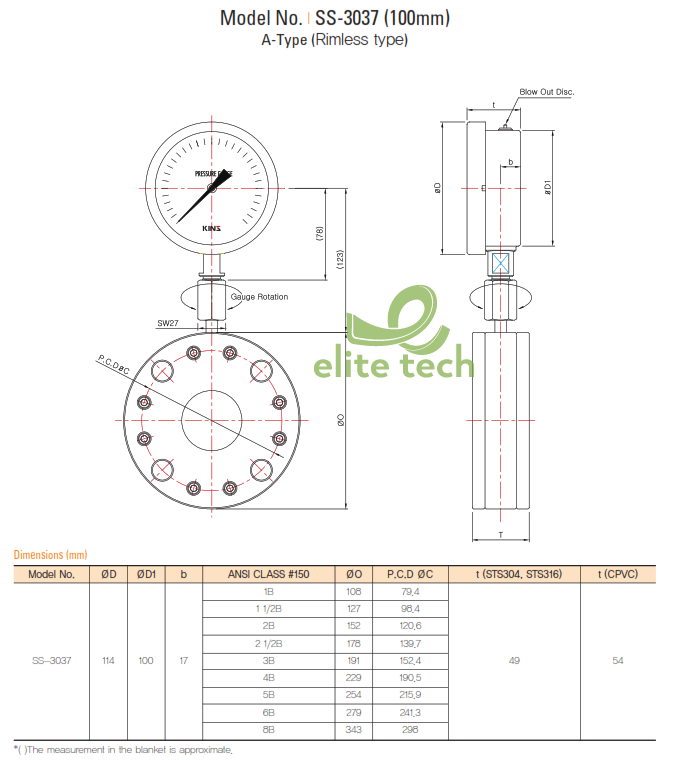

• Diameter 100 mm, 150 mm
• Accuracy ±1.0% of Full Scale

• Scale Range
• - 0.1 MPa ~ 0, - 0.1 MPa ~ 2 MPa, 0 ~ 2 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: -5 ~ 40 ℃
• Fluid: - 10 ~ 60 ℃
• Case & Cover STS 304
• Body Flange STS 304, STS 316
• Side Flange STS 304, STS 316, C-PVC
• Window Tempered safety glass or Laminated safety glass
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black gradation and characters

• Movement STS 304
• Diaphragm Viton
• Element
• STS 304
• C type bourdon tube
