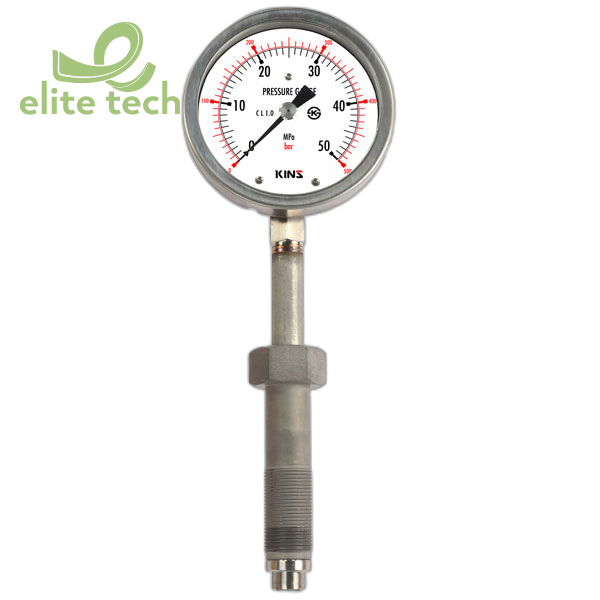

Đồng Hồ Áp Suất KINS SS-3040 Diaphragm Seal Type Pressure Gauge (For High Temperature)

• Summary
  • This gauge is designed to be suitable in measuring high viscosity fluid pressure with room temperature and pressure measurement of an element which has high temperature melting condition.
• Diameter 100, 150 mm
• Accuracy ±1.0% of Full Scale

• Scale Range
• 5 ~ 70 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 330 ℃
• Fluid: - 20 ~ 330 ℃
• Case & Cover
• STS 304
• Slip-on-Fit
• Connection PF ↔ 3/4, 1"
• Window Tempered safety glass or Laminated safety glass

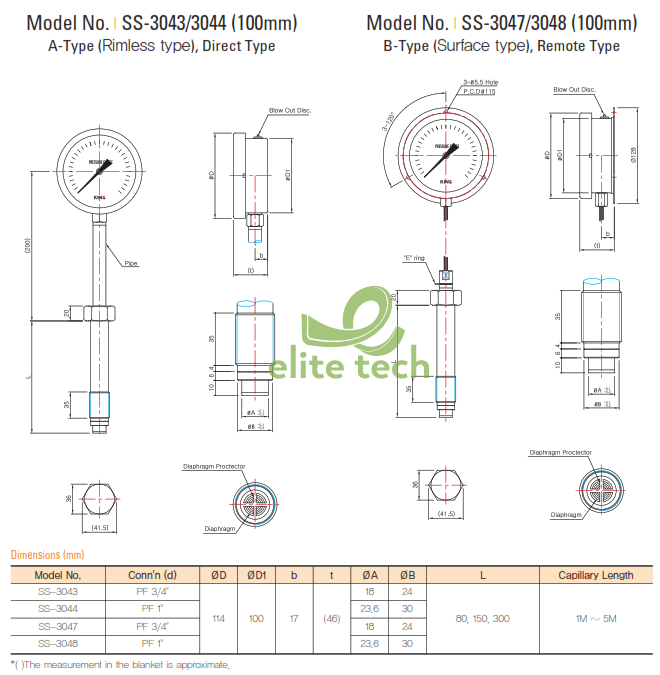

• Type
• 3043-Type (Direct type 18mm)
• 3044-Type (Direct type 23.6mm)
• 3047-Type (Flexible type 18mm)
• 3048-Type (Flexible type 23.6mm)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black gradation and characters

• Movement STS 304
• Mounting Bolt SM45C (Heat treatment)
• Diaphragm STS 316
