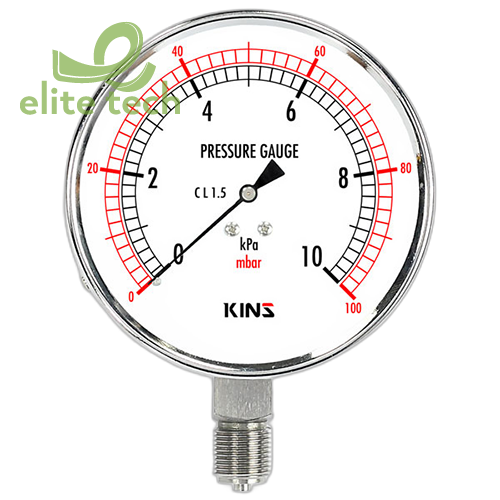

Đồng Hồ Áp Suất KINS SS-3050 General Low Pressure Gauge

• Summary
  • This gauge is specially designed to measure low pressure which cannot be measured by a bourdon pipe pressure gauge. This gauge uses a specially designed chamber as the element.
• Diameter 75, 100 mm
• Accuracy ±1.5% of Full Scale

• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover SS-3051, 3052 Steel (SPCD)
• Cr-Plating SS-3053, 3054 STS 304
• Connection
• Brass (C3604BE), STS 304
• PF, PT ↔ 1/4, 3/8, 1/2
• Window General glass
• Type A-Type (Rimless type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black (kPa), red (mbar) gradation and characters

• Movement Brass
• Element Phosphor Bronze
• Option Accessories
