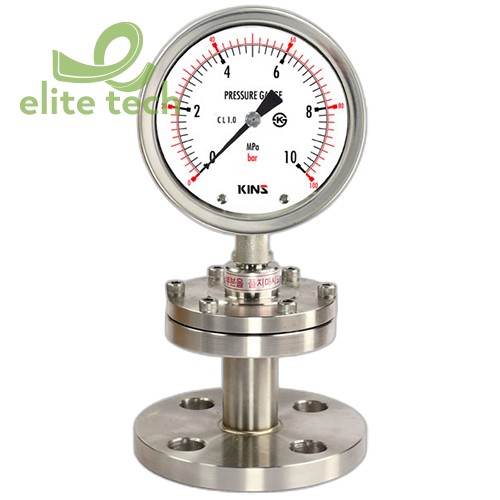

Đồng Hồ Áp Suất KINS SS-3056 Diaphragm Type Low Pressure Gauge

• Summary
  • This gauge is designed to guarantee the performance and the life span of the equipment which measures low temperature in case when measuring fluid mixed with powder.
• Diameter 100, 150 mm
• Accuracy ±1.5% of Full Scale

• Scale Range
• - 2 kPa ~ 0, - 1 + 1 kPa ~ - 20 + 20 kPa, 0 ~ 35 kPa
  (※ 1 kPa = 101.9716 mm H₂O)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 80 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover STS 304
• Upper Flange STS 304, STS 316
• Under Flange STS 304, STS 316
• Connection
• STS 316
• See flange standard table
• Window Tempered safety glass or Laminated safety glass
• Type SS-3056-Type (Direct- flange type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black (kPa), red (mbar) gradation and characters

• Movement Brass
• Diaphragm
• STS 304, STS 316
• Teflon (Lining, Coating), Titanium
• Able to produce teflon (lining, coating) titanium, tantalum, hastelloy, etc
