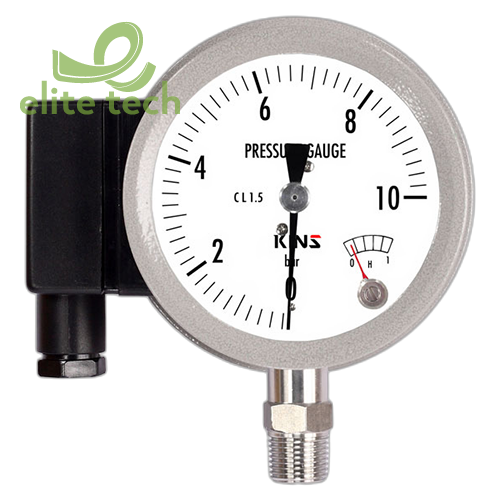

Đồng Hồ Áp Suất KINS SS-3060 Pressure Gauge With Micro Contact

• Summary
  • This equipment is a contact pressure gauge which has a micro switch inside the equipment. It produces an electric signal of ON, OFF by working the switch.
• Diameter 100 mm
• Accuracy
• Grade: ±1.5% of Full Scale
• Dead Band: ±4.0% of Full Scale

• Scale Range
• - 0.1 MPa ~ 2 MPa,
• - 0.1 MPa ~ 0 MPa, 0 ~ 35 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover Aluminum (Hammer tone coating)
• Connection
• STS 316
• PF, PT, NPT ↔ 3/8, 1/2
• Window Tempered safety glass or Laminated safety glass
• Type
• B-Type (Surface type)
• BD-Type (Panel attachment type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black gradation and characters

• Contact rating
• AC 125V 5A / 250V 3A
• DC 30V 4A / 125V 0.4A / 250V 0.2A
• Element
• STS 304, STS 316
• C type bourdon tube
• Contact Form
• Micro Contact Type
• SPDT * 1, SPDT * 2, DPDT * 1
  (High, Low, High & High High & Low, Low & Low)
• Option
• Bracket
• Accessories
