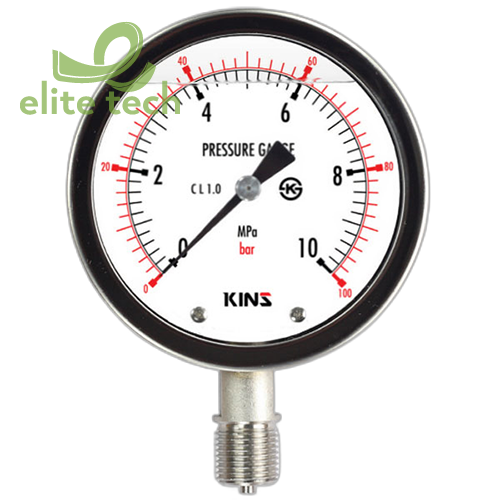

Đồng Hồ Áp Suất KINS SS-3070 Liquid Filled Pressure Gauge

• Summary
  • This gauge is proper for measuring the pressure in place where mechanical vibration and pulsation are heavy because its interior devices are precipitated in silicon liquid and by doing this.
• Diameter 60, 75, 100, 150 mm
• Accuracy
• 60, 75mm: ±1.5% of Full Scale
• 100, 150mm: ±1.0% of Full Scale

• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Degree of protection IP67
• Case STS 304
• Cover
• STS 304
• Slip-on-Fit
• Connection
• STS 316
• PF, PT ↔ 1/4, 3/8
• UNF 7/16
• Window Tempered safety glass or Laminated safety glass
• Type
• A-Type (Rimless type)
• B-Type (Surface type)
• D-Type (Flush mounting type)
• BD-Type (Panel attachment type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black (MPa), red (bar) gradations and characters

• Filling Liquid Silicone oil or Glycerin oil
• Element
• STS 304, STS 316
• C type bourdon tube, helical type bourdon tube
• Option
• Bracket
• Throttles
• Accessories
