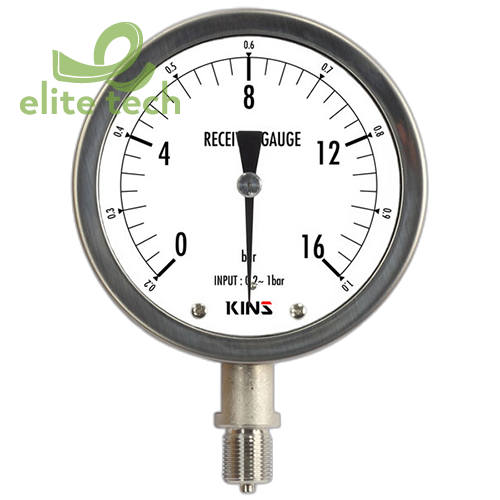

Đồng Hồ Áp Suất KINS SS-3080 Receiver Gauge

• Summary
  • This gauge is used for various kinds of receiver gauges which measure the amount, flux, differential pressure, pressure of the transfer system of pneumatic pressure.
• Diameter 100, 150 mm
• Accuracy ±1.0% of Full Scale

• Scale Range
• Linear Scale: 0 ~ 100%
• Square Root Scale: 0 ~ 10 Root
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case STS 304
• Cover
• STS 304
• Slip-on-Fit
• Connection
• STS 316
• PF, PT ↔ 1/4(Female), 3/8, 1/2
• Window Tempered safety glass or Laminated safety glass
• Type
• A-Type (Rimless type)
• B-Type (Surface type)
• D-Type (Flush mounting type)
• BD-Type (Panel attachment type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black gradation and characters

• Element
• STS 304, STS 316
• C type bourdon tube
• Movement STS 304
• Option
• Bracket
• Accessories
