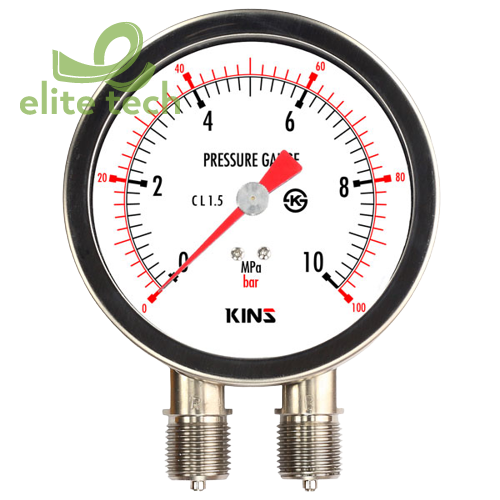

Đồng Hồ Áp Suất KINS SS-3090 Duplex Pressure Gauge

• Summary
  • This gauge has a structure that 2 pressure gauges are combined as a one equipment. It consists of two pressure openings, two bourdon pipes, two indicators (concentric trommel movement).
• Diameter 100 mm
• Accuracy ±1.0% of Full Scale

• Scale Range
• 0.4 MPa ~ 3.5 MPa, - 0.1 + 0.6 ~ 2 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover STS 304
• Connection
• STS 316
• PF, PT, NPT↔ 1/4, 3/8, 1/2
  (Duplex)
• Window Tempered safety glass or Laminated safety glass
• Type
• A-Type (Rimless type)
• B-Type (Surface type)
• D-Type (Flush mounting type)
• BD-Type (Panel attachment type)
• Pointer
• Aluminum
• Black (high), red (low)
• Dial
• Aluminum
• White color coating
• Black (MPa), red (bar) gradations and characters

• Element
• Brass
• C type bourdon tube
• Movement Brass
• Option Accessories
