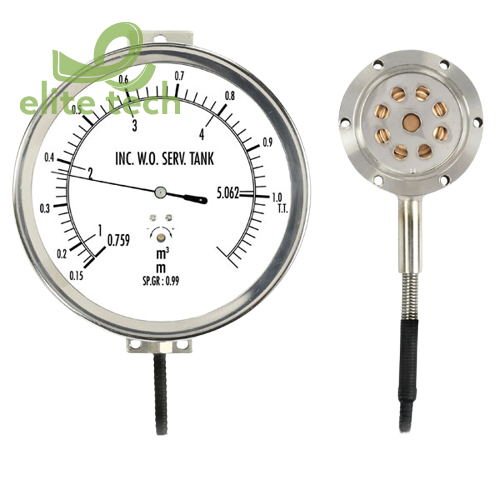

Đồng Hồ Áp Suất KINS SS-3100 Level Pressure Gauge

• Summary
  • This gauge has a chamber and has high accuracy and durability. It is easy to be attached and that`s the difference with other level gauges.
• Diameter 150 mm
• Accuracy ±1.5% of Full Scale

• Scale Range Depth of tank: 1 ~ 50(M)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 70 ℃
• Fluid: - 20 ~ 120 ℃
• Case STS 304
• Cover
• STS 304
• Slip-on-Fit
• Connection Flange
• Window Tempered safety glass
• Type Bracket
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black gradation and characters

• Element STS 304, STS 316
• Movement Brass
• Capillary Tube
• STS304
• Max. 10M
