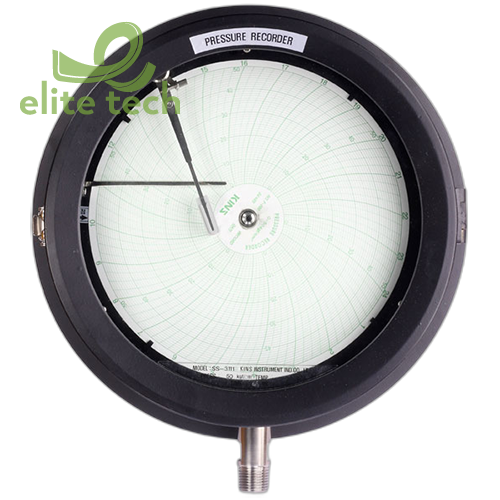

Đồng Hồ Áp Suất KINS SS-3111 Pressure Recorder Gauge

• Summary
  • This gauge is a wall-mounted tightness test recording instrument which records pressure changes while running with a pen on a paper for recording according to the flow of time with a recording device.
• Diameter 250 mm
• Accuracy ±1.5% of Full Scale

• Scale Range
• - 0.1 MPa ~ 2 MPa, 0 ~ 100 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover Aluminum (Black coating)
• Connection
• STS 316
• PF, PT, NPT ↔ 3/8, 1/2)
• Window Tempered safety glass or Laminated safety glass
• Type

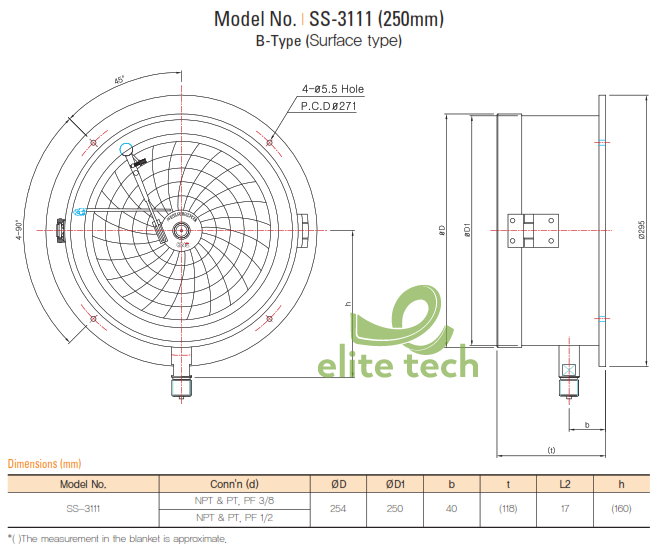

• B-Type (Surface type)
• Recorder Pen 1 pen (Pressure)
• Revolution Time

• Stationary type (spring type)
  ~ 10min, 30min
• Controlling type (battery type)
  ~ 30min, 1hr, 3hr, 4hr, 12hr, 24hr
  2Day, 4Day, 7Day, 8Day, 16Day
• Chart Paper 30 papers
• Element
• STS 304, STS 316
• C type bourdon tube
• Movement STS 304
• Option Accessories
