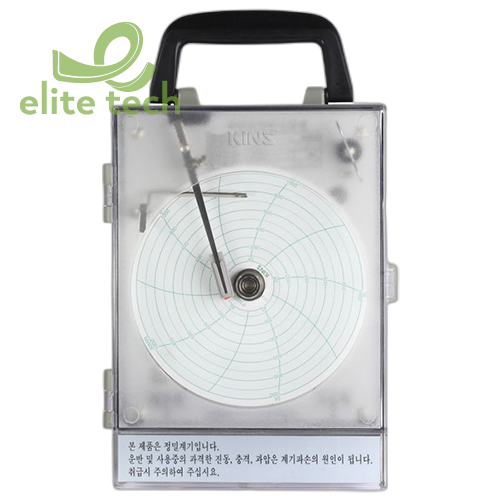

Đồng Hồ Áp Suất KINS SS-3112 Leak Testing Recorder For Portable

• Summary
  • This gauge is a wall-mounted tightness test recording instrument which records pressure changes while running with a pen on a paper for recording according to the flow of time with a recording device.
• Diameter 100 mm
• Accuracy ±1.5% of Full Scale

• Scale Range
• 10 kPa ~ 50 kPa
  (※ 1 kPa = 101.9716 mm H₂O)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover ENG`G Plastic
• Connection
• Brass
• Hose Connector
• Window ENG`G Plastic
• Type Portable (square)
• Recorder Pen 1 pen
• Revolution Time
• Hand operated spring type (no power)
  10min/R, 30min/R
• Chart Paper 100 papers

• Element Phosophor Bronze
• Movement Brass
• Option Accessories
