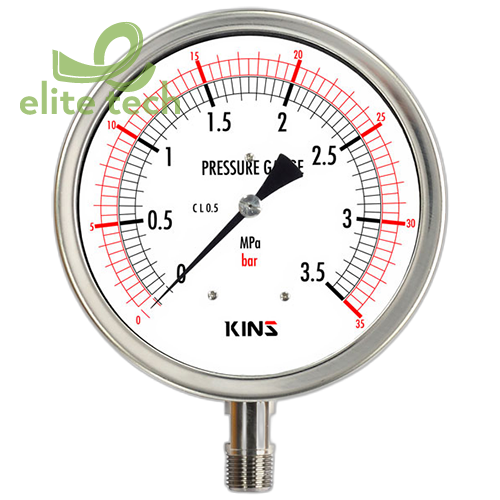

Đồng Hồ Áp Suất KINS SS-3120 Test Pressure Gauge

• Summary
  • In these days, as the service condition is diverse, the need of measuring high level pressure increases. This gauge is proper for measuring the changes of high levels.
• Diameter 150 mm
• Accuracy ±0.5% of Full Scale

• Scale Range
• 0.1 MPa ~ 100 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Case STS 304
• Cover
• STS 304
• Slip-on-Fit
• Connection
• STS 316
• PF, PT, NPT ↔ 1/4, 3/8, 1/2
• Window Tempered safety glass or Laminated safety glass
• Type
• A-Type (Rimless type)
• B-Type (Surface type)
• D-Type (Flush mounting type)
• BD-Type (Panel attachment type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black (MPa), red (bar) gradations and characters

• Element
• STS 304, STS 316
• C type bourdon tube, helical type bourdon tube
• Movement STS 304
• Option
• Bracket
• Throttles
• Accessories
