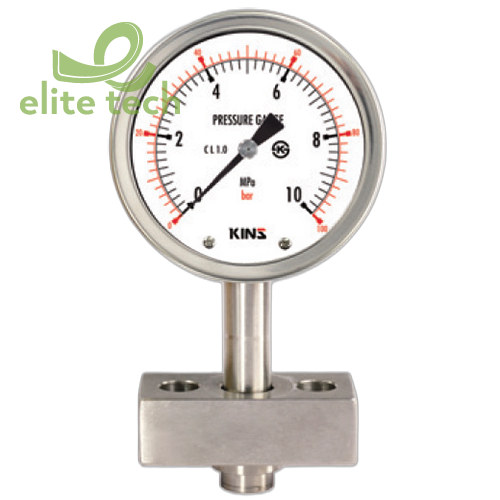

Đồng Hồ Áp Suất KINS SS-3135 SS-3136 Sanitary Pressure Gauge

• Summary
  • This gauge is designed to guarantee the performance and the lifespan of the equipment which measures pressure of fluid which is mixed with powder that has coagulation in chemical industry such as food.
• Diameter 100 mm
• Accuracy ±1.0% of Full Scale

• Scale Range
• SS-3135: - 0.1 + 0.2 MPa ~ 2 MPa, 0 ~ 10 MPa
• SS-3136: 15 ~ 70 MPa
  (※ 1 MPa = 10.19716 kgf/㎠)
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 80 ℃
• Fluid: - 20 ~ 80 ℃
• Case STS 304
• Cover
• STS 304
• Slip-on-Fit
• Connection
• STS 316
• IDF & DIN 1 1/2S, 2S, 2 1/2S, 3S: Female (SS-3135)
  See the drawing of product (SS-3136)
• Window Tempered safety glass or Laminated safety glass
• Type
• 3135(A)-Type (Female screw type)
• 3136(A)-Type (Jig type)
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White color coating
• Black (MPa), red (bar) gradations and characters

• Element
• STS 304, STS 316
• C type bourdon tube
• Movement STS 304
• Diaphragm STS 304. STS 316
