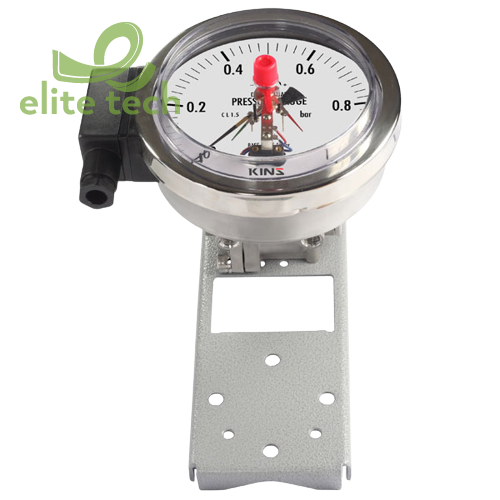

Đồng Hồ Áp Suất KINS SS-3301 Differential Pressure Gauge With Contact

• Summary
  • This gauge has L (low pressure side) and H (high pressure side) in pressure access port. By indicating the differential of pressure (differential pressure) of 2 places.
• Diameter 100, 150mm
• Accuracy ±1.5% of Full Scale

• Scale Range
• 5 ~ 50 kPa, 0 ~ 1 MPa
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 80 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover STS 304 (IP 65)
• Connection
• STS 316
• PT ↔ 1/4 (Female)
• Window Poly-carbonate
• Pointer
• Aluminum
• Black coating
• Bellows (Element) STS304, STS316

• Movement STS 304
• Connecting method U-Bolt for 2B Pipe
• Base Pressure 5 MPa
• Contact rating
• AC 125V 0.5A / 250V 0.25A
• DC 24V 0.25A
• Option
• 3-Way or 5-Way Manifold valve
• Accessories
