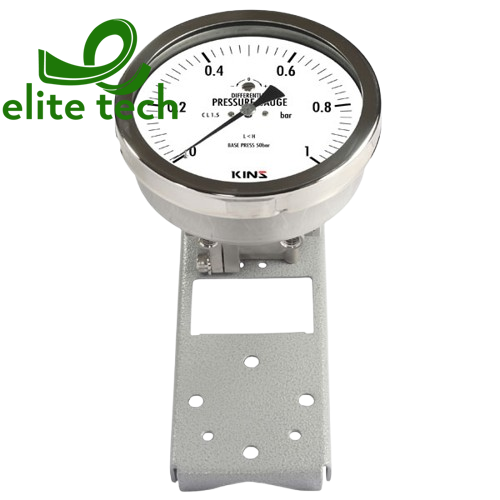

Đồng Hồ Áp Suất KINS SS-3302 Differential Pressure Gauge

• Summary
  • This gauge has L (low pressure side) and H (high pressure side) in pressure access port. By indicating the differential of pressure (differential pressure) of 2 places.
• Diameter 100, 150mm
• Accuracy ±1.5% of Full Scale

• Scale Range
• 5 ~ 50 kPa, 0 ~ 1 MPa
• Working Pressure
• Static pressure: 75% of Full Scale
• Fluctuating pressure: 60% of Full Scale
• Working Temperature
• Ambient: - 20 ~ 65 ℃
• Fluid: - 20 ~ 80 ℃
• Case & Cover STS 304 (IP65)
• Connection
• STS 316
• PT ↔ 1/4(Female)
• Window Tempered safety glass or Laminated safety glass
• Pointer
• Aluminum
• Black coating
• Dial
• Aluminum
• White coating
• Black (MPa), red (bar) gradations and characters
• Bellows (Element) STS304, STS316

• Movement STS 304
• Connecting method U-Bolt for 2B Pipe
• Base Pressure 5 MPa
• Option
• 3-Way or 5-Way Manifold Valve
• Accessories
