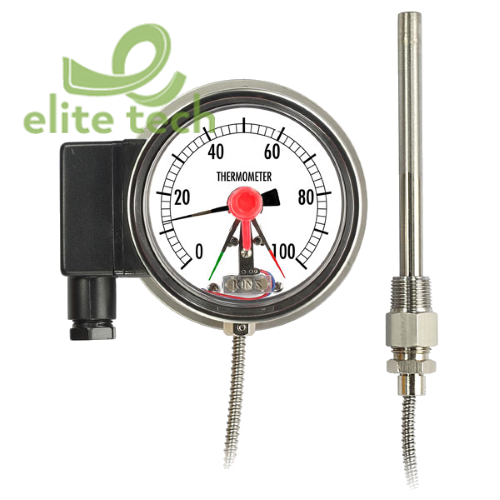

Đồng Hồ Nhiệt Độ KINS SS-4020 Series 100mm - Liquid Filled Type Thermometer (With Contact)

• Summary The principle and structure of this temperature measurement instrument is the same as the filled thermometer but it produces a contact signal when there is an increase or decrease of temperature
• Diameter 100 mm
• Accuracy ±2.0% of Full Scale
• Scale Range -30℃ ~ 650℃
• Common Temperature 75% of Full Scale
• Case STS 304
• Cover
  • STS 304
  • Slip-on-Fit
• Connection
  • STS 304, 316
  • PF, PT, NPT ↔ 1/2
• Window Poly Carbonate
• Type
  • B-Type (Surface type)
  • BD-Type (Panel attachment type)
• Dial
  • Aluminum
  • Color of white
  • Black gradation and characters
• Pointer
  • Phosphor bronze
  • Black coating
• Capillary Tube Standard 2 M (Maximum 10 M)
• Contact rating
  • AC 125V 0.5A / 250V 0.25A
  • DC 24V 0.25A
• Contact type
  • High and Low 2 contact (High or Low, High & High High & Low, Low & Low)
